Clamp Butterfly Valve
Regular price
$42.60 USD
Sale price
$42.60 USD
Regular price
-
Estimated Delivery(Non customized equipment and spare parts below 80L):Jun 25 - Jun 29
-
Free Shipping: Distillers below 99L/26Gal and some accessories
FOB Price: Equipment over 99L will only be shipped to the departure port. Contact Hooloo Team for DDP shipping quotes if required.
Product description
Shipping & Return

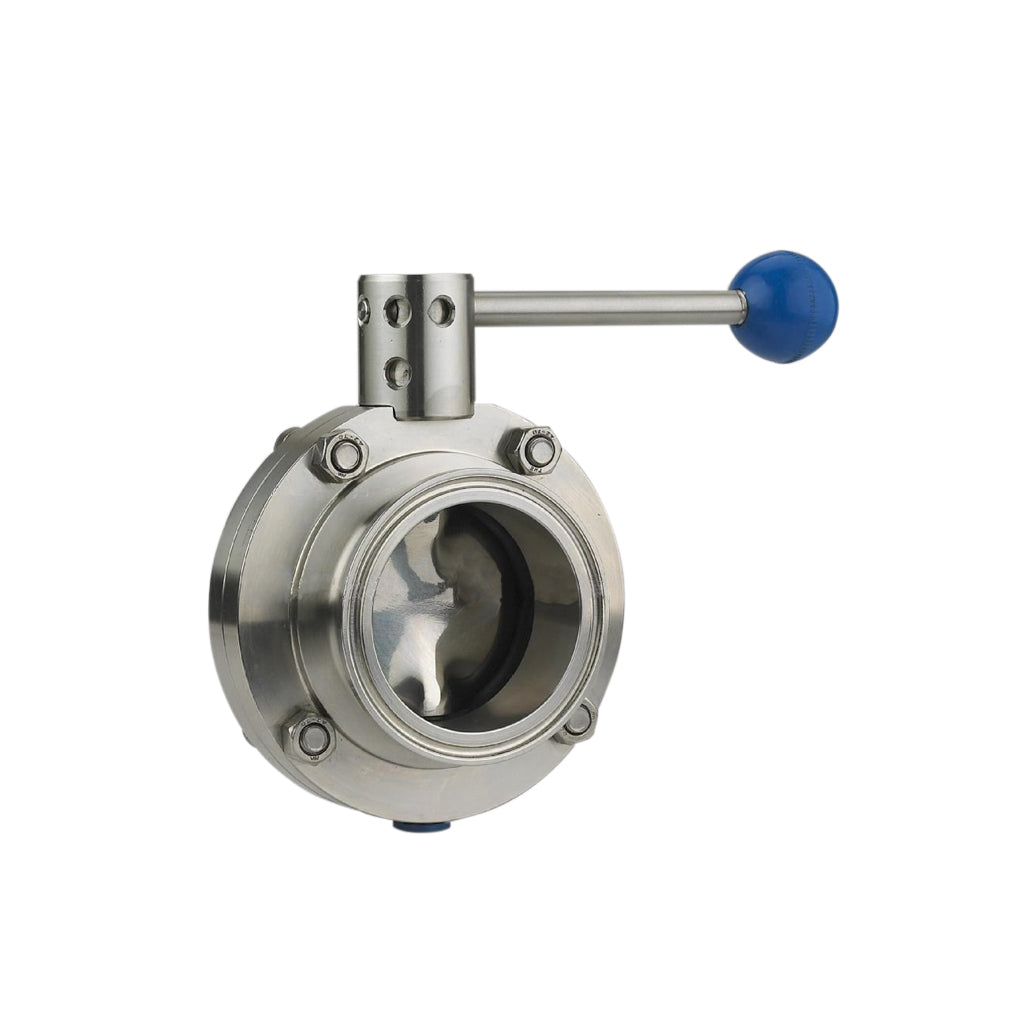

This Clamp Butterfly Valve is used to control the fluid. It's suitable for food and beverage proccessing application.
With pulling handle, you can adjust it by 45 and 90 degrees. Easy to assemble with tri clamp.
Note there will be 3 different types of seat material (Silicone/Viton/EPDM). Please choose one when you order.
Don't forget to buy the gasket.:)
| Material: 304 Stainless Steel | Product Type: Clamp Butterfly Valve |
| Specification: 3A | End Type: Tri Clamp |
 |
H | D | D1 | L | L1 | |
| 1" | 2.40 | 2 | 3.10 | 2.60 | 5.35 | |
| 1 1/2" | 2.53 | 2 | 3.54 | 2.76 | 5.35 | |
| 2 | 2.93 | 2.52 | 4.33 | 3.00 | 5.35 | |
| 2 1/2" | 3.06 | 3.05 | 4.53 | 3.31 | 5.35 | |
| 3" | 3.32 | 3 | 5.04 | 2.28 | 6.42 | |
| 4" | 4 | 4 | 6.06 | 2.52 | 6.42 |
