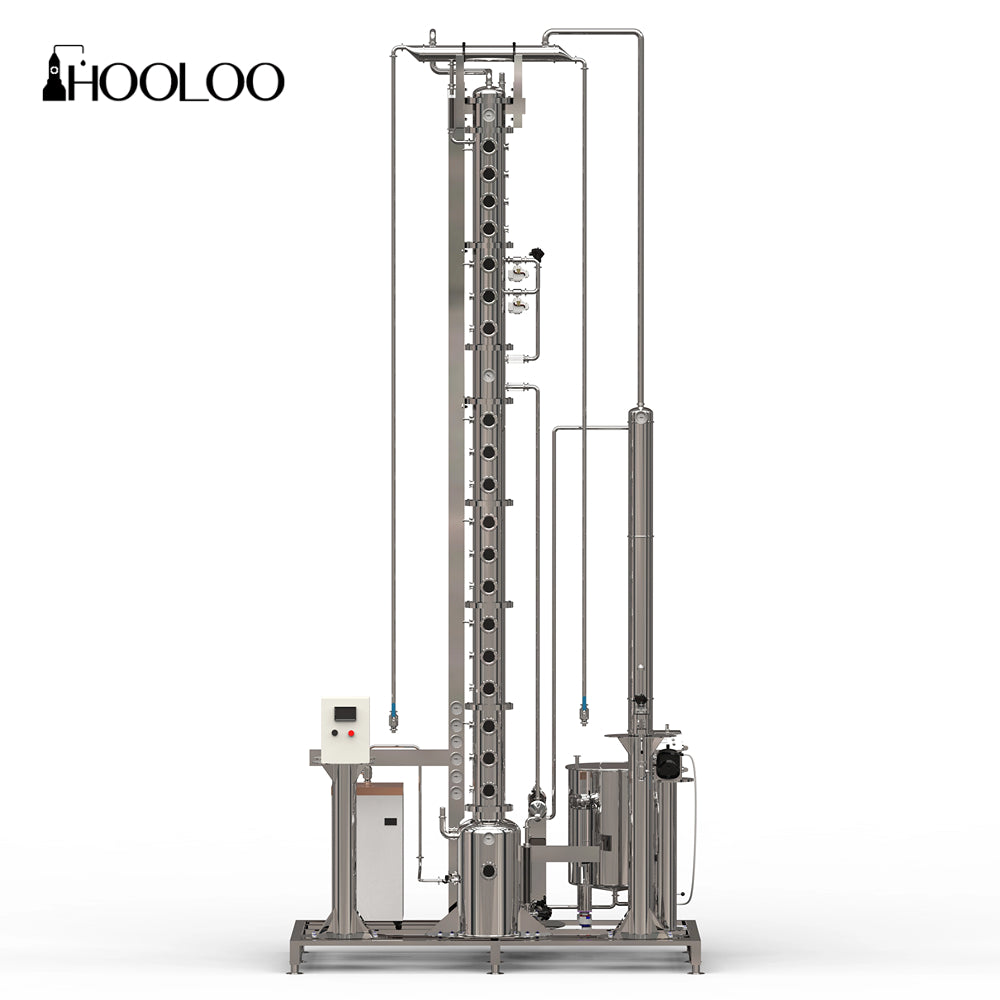

HOOLOO Large Commercial Continuous Distiller
HOOLOO Large Commercial Continuous Distiller
The price marked on the page is FOB (Free On Board).You need to contact the store customer service to inquire about the shipping costs and pay them.
The product requires a production cycle, which generally takes 3-7 weeks (may need to be scheduled).
This product supports customization. If you have any other requirements or specific price inquiries, you can ask the store customer service.
Key Features
Faster Distillation, Same Energy
Check out the parrot’s beak on our continuous still – it’s a total game-changer! It cranks out 5x more spirits with the same energy input, so you’re getting way more output without wasting a watt. Whether you’re scaling up or perfecting batches, this means faster production, lower energy costs, and bigger wins for your distilling game. It’s not just a feature – it’s your ticket to efficient, high-speed spirit-making!
Rapid Heating
It features a 24kW electric steam generator for heating, offering high power and rapid heating, but requires 3ph and 380V to operate. However, we can customize a system to suit your country's voltage and power requirements.
Automatic Feeding
Equipped with a 180W peristaltic pump, it can be started with one button on the PLC. The maximum power is 12L/minute. You can adjust the flow rate of the peristaltic pump as needed while working.
Temporary Storage Tank
This storage tank is used with a 330W diaphragm pump. Before starting distillation, the peristaltic pump needs to be connected to the fermentation tank to pump the fermentation liquid into the storage tank. During distillation, it is essential to ensure that there is always fermentation liquid in the storage tank; otherwise, distillation cannot proceed normally.
PLC Control System
Featuring an PLC control, this continuous distillation equipment allows real-time temperature monitoring at key positions. It integrates control switches for various pumps and valves, supports auto/manual modes, and includes CIP cleaning and multi-column control functions, enabling intelligent distillation process management for enhanced efficiency and quality.
Versatile Application
Equipped with a CIP cleaning system (1.5KW centrifugal pump and pipeline cleaning unit), it can be controlled via PLC. This enables efficient cleaning of pipelines and columns, ensuring hygiene and extending equipment lifespan. This automated cleaning solution simplifies maintenance; optimal cleaning results are achieved with just a few clicks on the PLC control panel, making your distillation process more reliable and meeting stringent hygiene standards.
-
Name: Continuous Distiller
-
Heating: Steam Heating
-
Capacity: 13Gal / 50L
-
Voltage: 380V
-

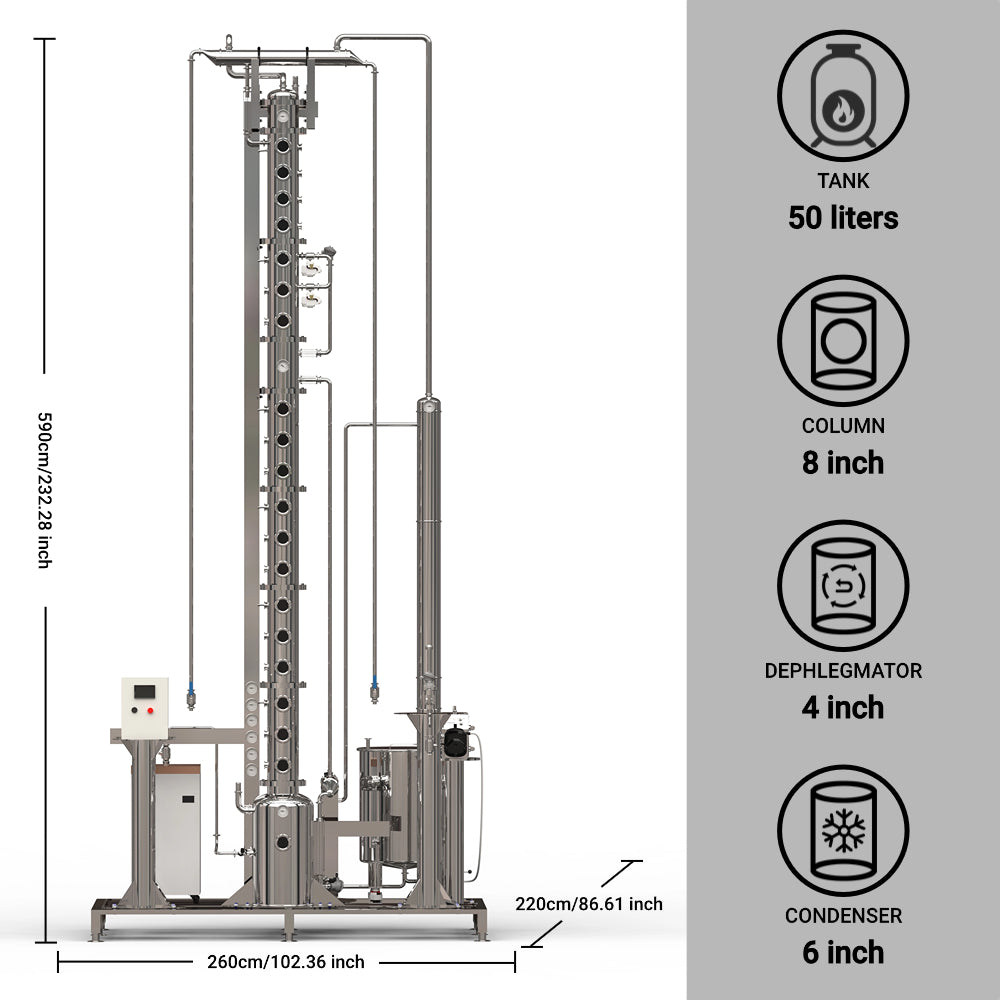

Size: 260*220*590cm
